INTRODUCING
UNMATCHED efficiency

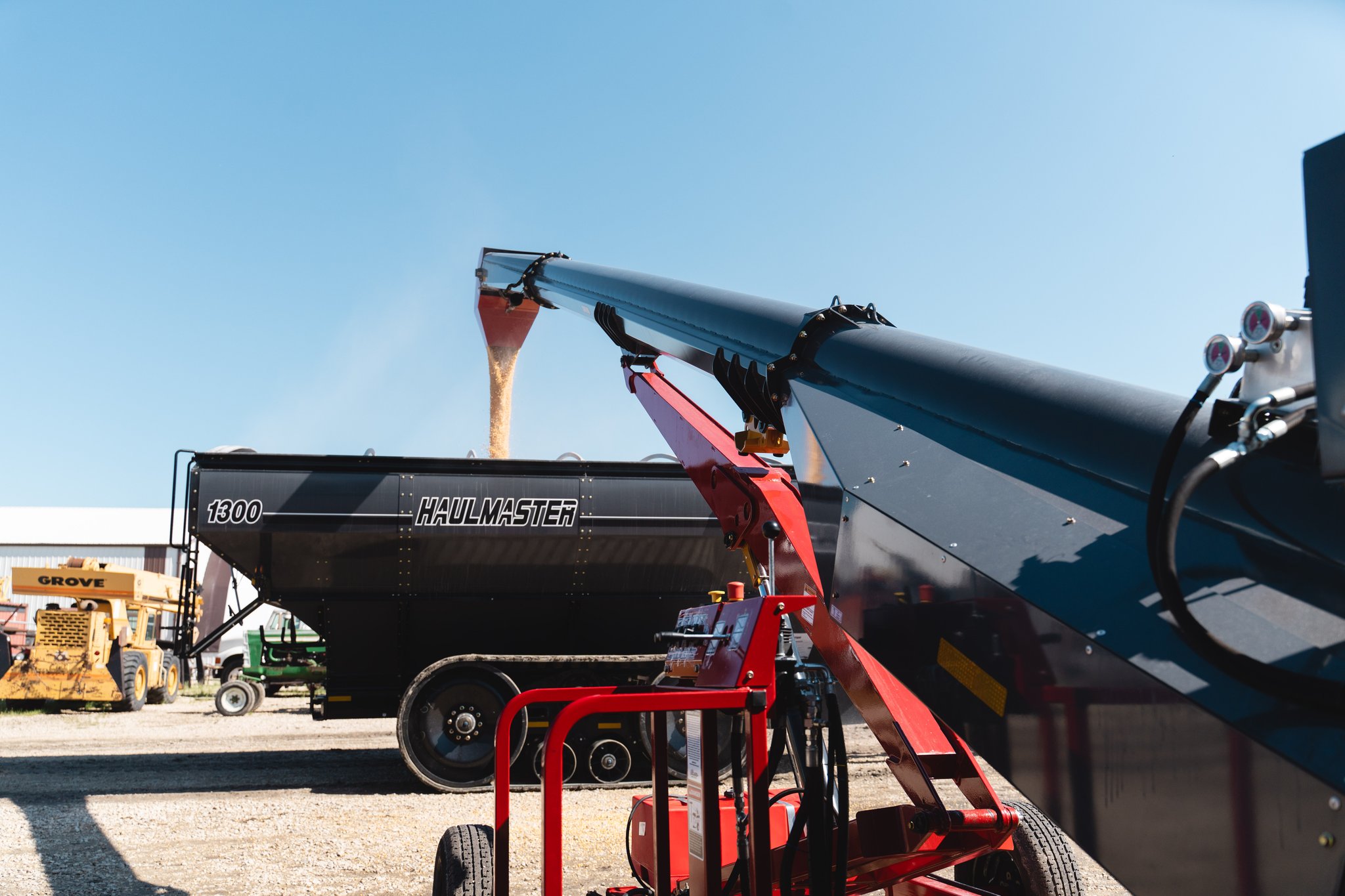

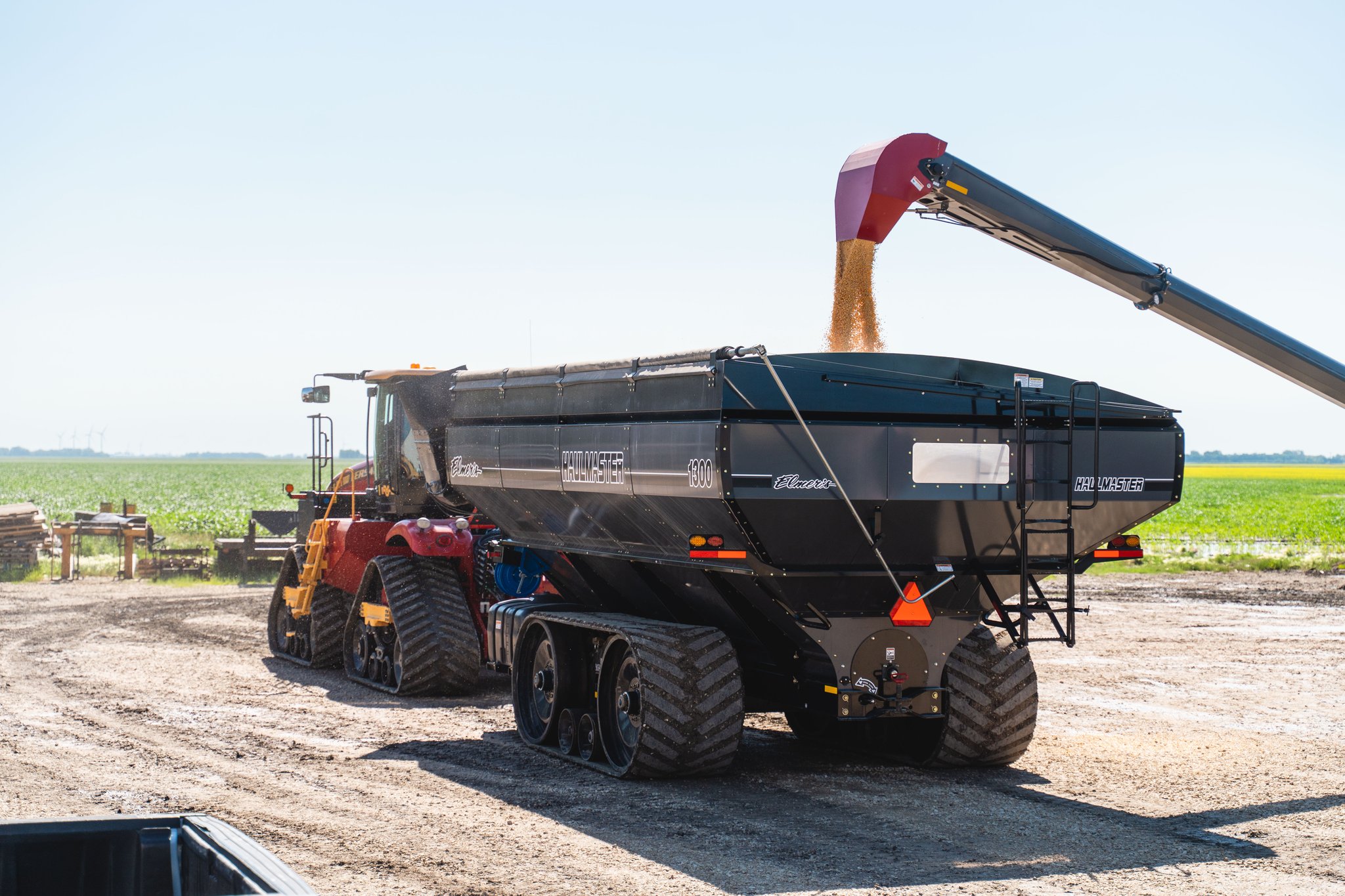

Industry's fastest unload speeds
Load your 1,000bu truck in 4-5 minutes, and get them back to the field. Logistics can be harvests worst nightmare - pair the CropCommander with the HaulMaster to optimize your harvest.
mobility to cater to your operation
gas powered motor for reliable starts
A common gas powered engine provides efficiency and quick starts, even in winter. With 40hp at the ready to move grain, you aren't bogged down by power draws for the tensioning system.
Ride on Portability
More grain throughput when its needed.
Whether you're selling seed, loading trucks, or moving grain from bin to bin, with Elmer's Crop Commander you will move more bushels per hour, while still being gentle on what matters most - your commodity.
Specs

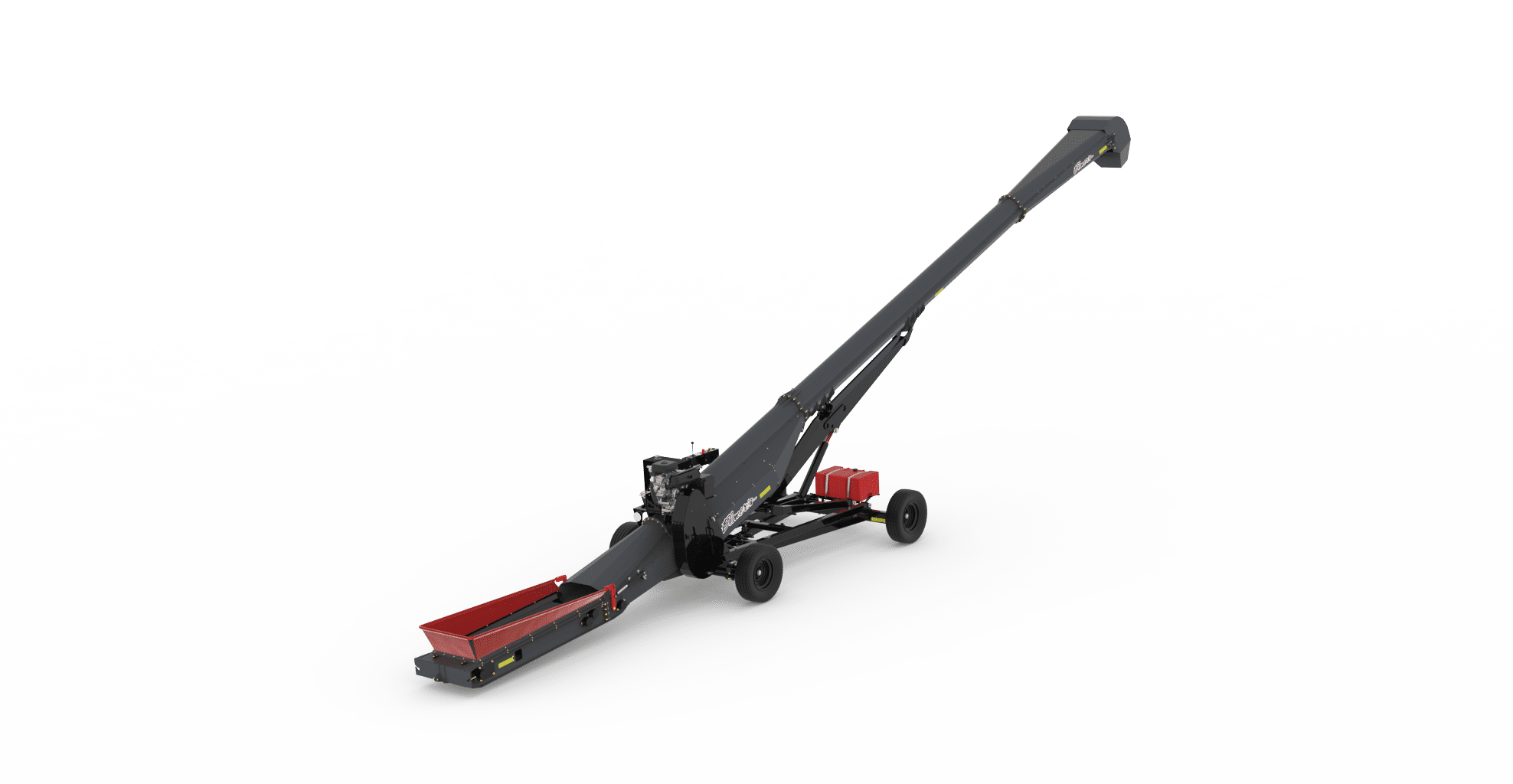

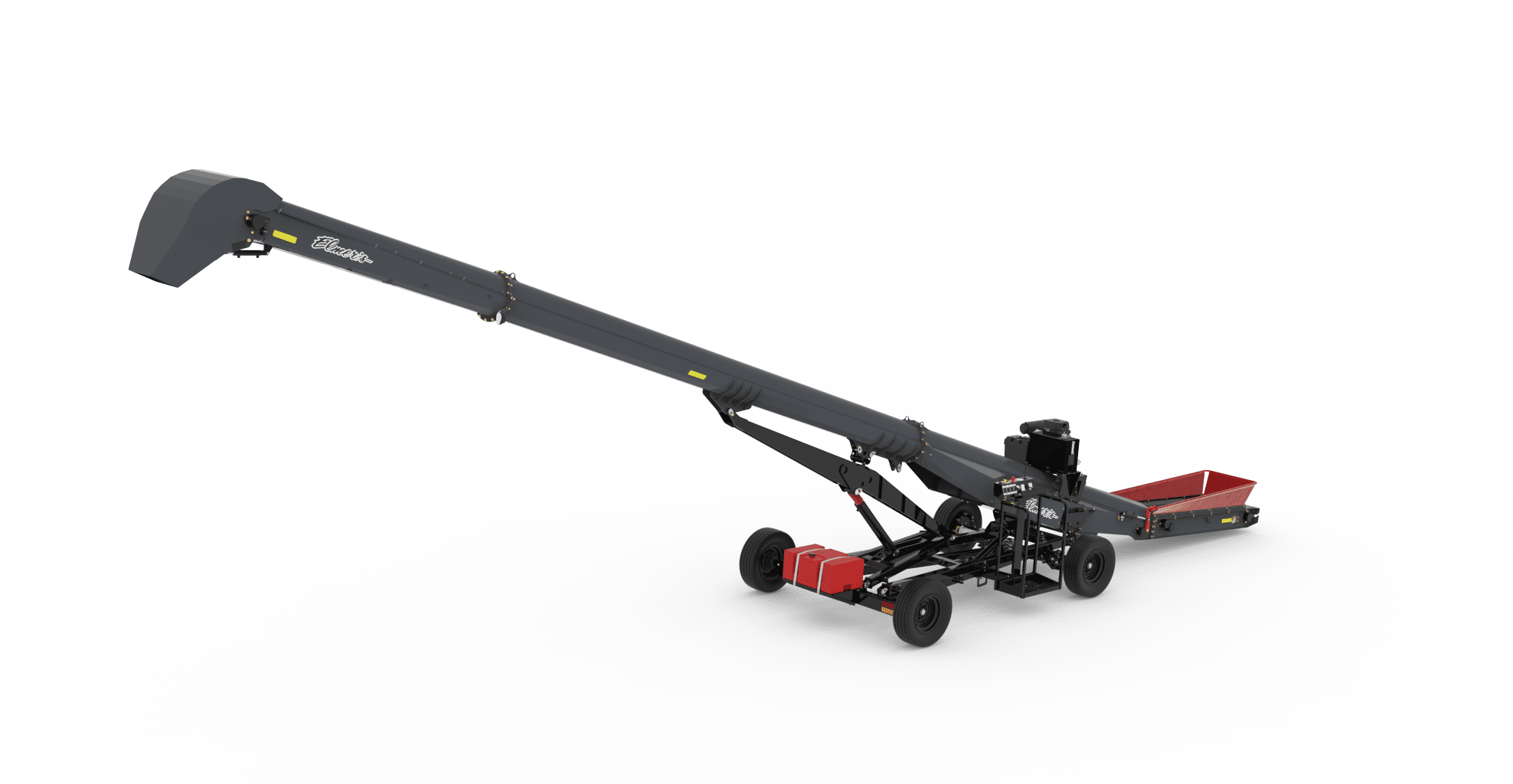

Crop Commander
The Crop Commander currently comes in a single configuration, offering speed and an ideal size for producers needing to move grain from bins or trucks.
Specifications
Capacity
14,000 bu/hr
HP - Gas
40 HP
Belt Width
24"
Belt Take-up
80"
Conveyor Length
50'
Raised Height
22' 2"
Raised Reach
22' 5"
Lowered Height
12' 6"
Lowered Reach
25' 6"
Maintenance Height
5' 10"
Transport Height
13' 10"
Transport Length
55' 5"
Intake Reach
12'
Tube Diameter
13"
Wheel Track Width
8' 5"
Tire Size
225/75R15
Total Weight
6800 lb
Hopper Width & Length
30" x 60"
Hopper Collapsed Height
12"
Hopper Raised Height
24"
